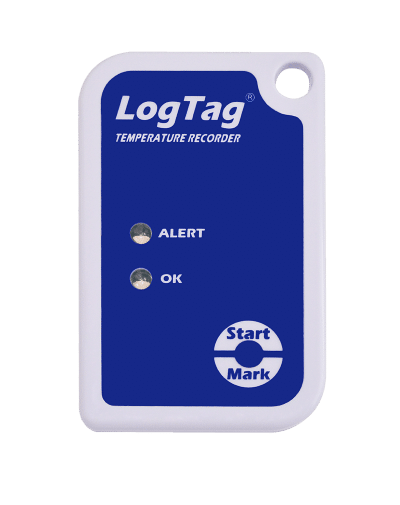

The LogTag TRIX-8 is a small, easy to use logger that's perfect for monitoring temperature-sensitive products while in transit or in storage.
At the size of a credit card, it lets you monitor and record temperatures in your warehouse, cold storage or anywhere environmental data is needed.
Using the LogTag cradle and free software, the TRIX-8 is easily set up for measurements and the downloaded data can be charted, analyzed or exported to other applications.
Features:
- 8,000 reading capacity with up to 3 year battery life
- WHO PQS pre-qualified under E006/006
- ‘OK’ and ‘ALERT’ indicators with customizable high and low alarms
- Push button start with optional delay or start can be set to a specific time & date
- Enclosed in a robust and durable polycarbonate case
- Less than 5 second download time for full memory
- Complies with industry standards including EN12830
Software:
LogTag Analyzer is a free, powerful software designed to work with LogTag data loggers, enabling users to easily download, analyze and manage recorded data.
- Automatic download of data when logger is inserted into the interface cradle (sold separately)
- Software is user-friendly and has a wide range of export options including Excel and PDFs
- Multi-chart feature for viewing several LogTags simultaneously
- Free Download
Specifications:
- Range: -40°F to 185°F (-40°C to 85°C)
- Accuracy: ±0.9°F from -4°F to 104°F (±0.5°C from -20°C to 40°C)
- actual performance is typically much better than the rated values
- Capacity: 8,031 temperature readings
- 53 days at 10 min. logging
- 80 days at 15 min logging
- Sampling Interval: 30 sec. to several hours (adjustable)
- Environment: IP65 (roughly equivalent to NEMA 4)
- Power: CR2450 3V LiMnO2 Battery (fixed)
- Battery Life: 1 year storage, followed by 2–3 years of normal use (based on 15 min interval)
- (up to 5 years, if logger hibernates between uses)
- Weight: 33 g
- Dimensions: 86 x 54.5 x 8.6 mm
